詳細說明
KB2E08-02,KB2E08-03,KB2E10-02,KB2E10-03,KB2E12-03,KB2E12-04,內螺隔板接頭,價格

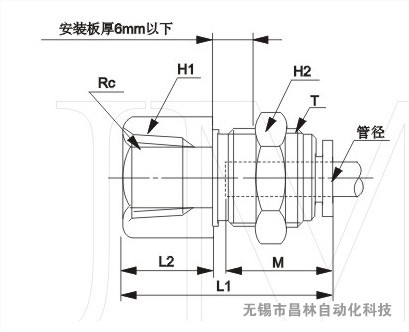

| MODEL | 管徑 | Rc | T | H1 | H2 | L1 | L2 | 安裝孔 | M | CT(mm2) | 重量 |
| KB2E04-01 | 4 | 1/8 | M12×1 | 14 | 14 | 27.5 | 11 | 13 | 16 | 5.6 | 16 |
| KB2E04-02 | 1/4 | 17 | 31 | 15 | 35 | ||||||
| KB2E06-01 | 6 | 1/8 | M14×1 | 17 | 17 | 28 | 11 | 15 | 17 | 12.1 | 30 |
| KB2E06-02 | 1/4 | 31.5 | 15 | ||||||||
| KB2E06-03 | 3/8 | 19 | 33.5 | 17 | 29 | ||||||
| KB2E08-01 | 8 | 1/8 | M16×1 | 17 | 19 | 27.5 | 7.5 | 17 | 18.5 | 26.1 | 28 |
| KB2E08-02 | 1/4 | 33 | 13 | 27 | |||||||
| KB2E08-03 | 3/8 | 19 | 35 | 15 | 48 | ||||||
| KB2E10-02 | 10 | 1/4 | M20×1 | 22 | 24 | 34.5 | 12.5 | 21 | 21 | 41.5 | 53 |
| KB2E10-03 | 3/8 | 22 | 36.5 | 15 | 67 | ||||||
| KB2E12-03 | 12 | 1/4 | M22×1 | 24 | 27 | 37 | 14 | 23 | 22 | 58.3 | 92 |
| KB2E12-04 | 1/2 | 41 | 18 | 59 |
