CS1-063，螺紋式插裝順序閥

  特性/Characteristic:

●工作壓力口2,出口3,外導壓口1。
●遲滯小于±1%。
●快速反應,響應時間10ms。
●Operated pressure port at 2,outlet pressure port at 3,External pilot port at 1
●Hysteresis is less than ±1%
●Fast acting10ms response time
注:閥孔型號:Valve Cavity:C063
成型刀具 Cavity Tools:CTD6-D.CTD6-R
請參閱 Reference P98

  性能表/Specification:

型號 Model	閥系說明 Description	額定流量 Rated Flow	最高壓力 Max.pressure	重量 Weight
CS1-063	外導型 External operated  平衡滑柱式 Balanced spool	10/min	315bar	K:0.17Kg L:0.14Kg

  選購指南/How to order:

CS1	063	L	10	N
系列編號： 順序閥- Series No. Sequence Valves.	閥孔型號 Cavity Size	調整方式 Controls L-螺桿調整 Standard Screw Adjustment K-旋鈕調整 Hand Knob & Locknob Adj.	壓力調整范圍 Adjustment Ranges. 10-5 to 100 bar. 20-7 to 210 bar.	油封材質 Seals:N-丁腈橡膠 Buna N. V-氟橡膠 Viton.

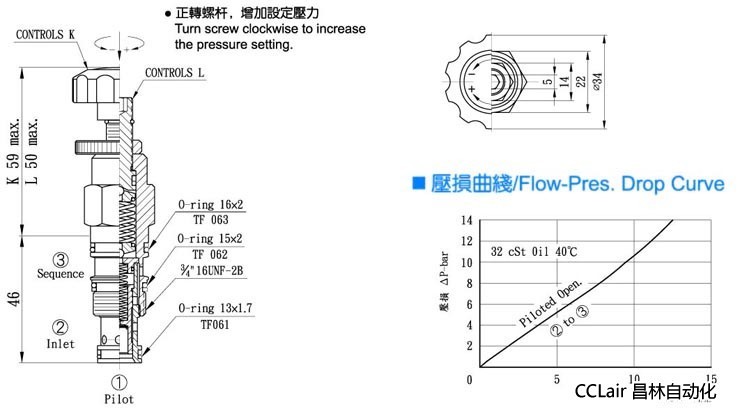

  尺寸圖/Dimensions(mm)
