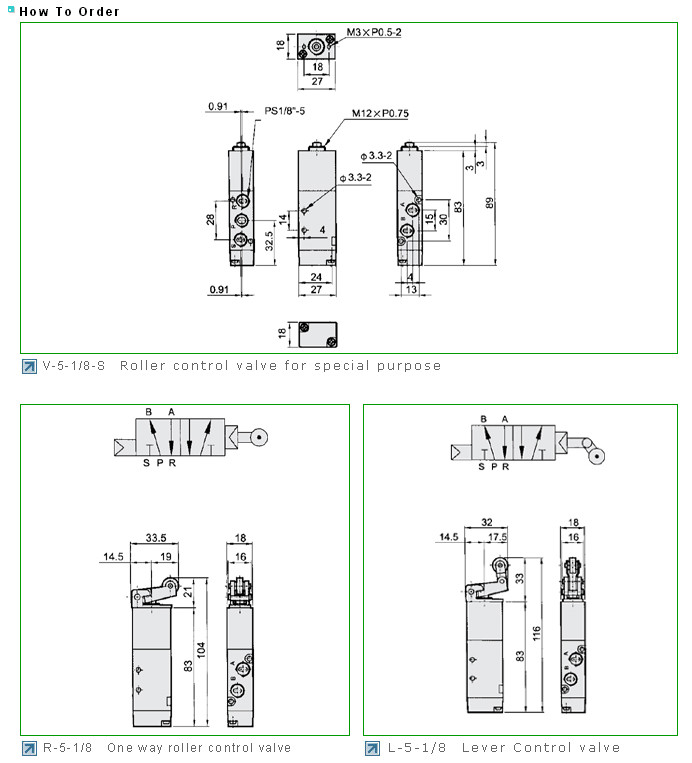

V-5-1/8-S,R-5-1/8,L-5-1/8,neuma機械閥
Technical Data.
The roll control valve have short action distance and small action force.
| Position |
5/2 Way
|
| Port size |
G 1/8”
|
| Effective area |
12mm2 (Cv=0.67)
|
| Nominal flow |
670 Nl/min
|
| Fluid |
Compressed air
|
| Pressure range |
1.5~8bar(22~115psi)
|
| Operating temperture |
5~60°C (41~140°F)
|
| Weight |
0.10 kg
|
